DPA Microphones Microphone Adapters
All of DPA’s microphones can be configured to run easily and effortlessly with a wireless system. DPA uses a unique MicroDot termination on their microphones together with a changeable adapter to ensure secure configuration. All of the adapters DPA uses are original, developed and manufactured by the wireless system brand you use. This ensures that your mic will work consistently with no connection trouble to your system.
Using an adapter for wireless, DPA microphones with MicroDot termination are compatible with the professional wireless systems listed below. Many of these brands have several model numbers. To ensure compatibility you should find your particular model number, which in most cases can be found on the transmitter. Other configurations are possible; however, DPA Microphones cannot guarantee full compatibility in these cases.
If you prefer to run via a wired system, all DPA mics are available with an XLR connector.

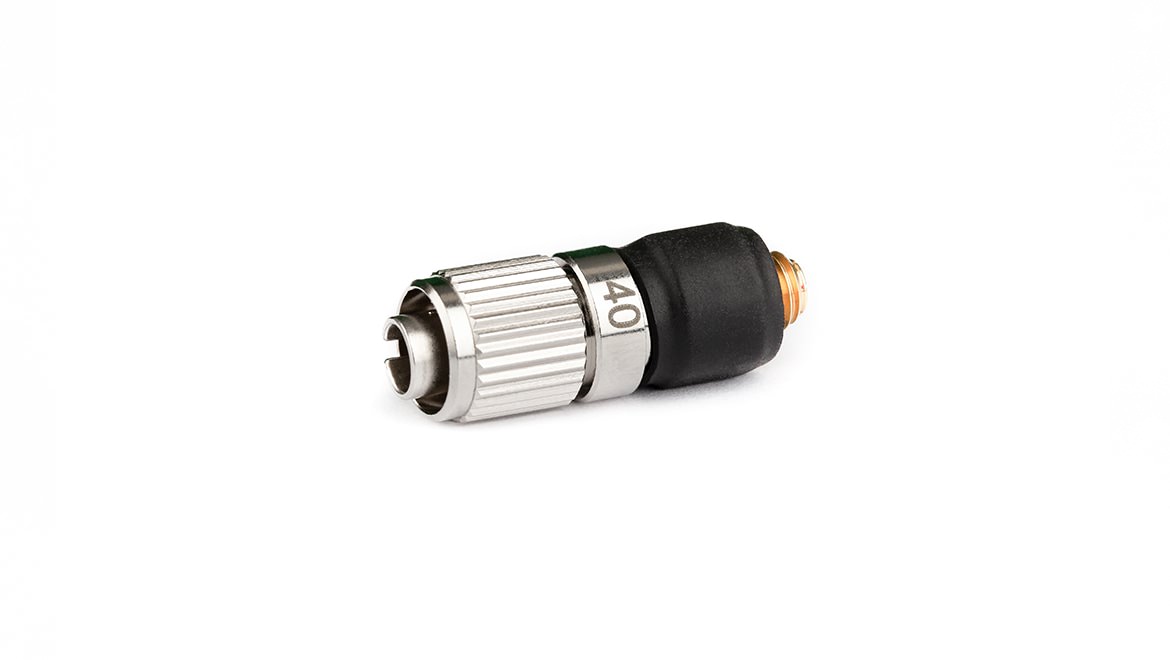

Adapter for Audio-Technica ATW-T3201, ATW-T5201, ATW-T6001S (DAD6040)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Audio-Technica T3201, T5201, T6001S wireless systems.

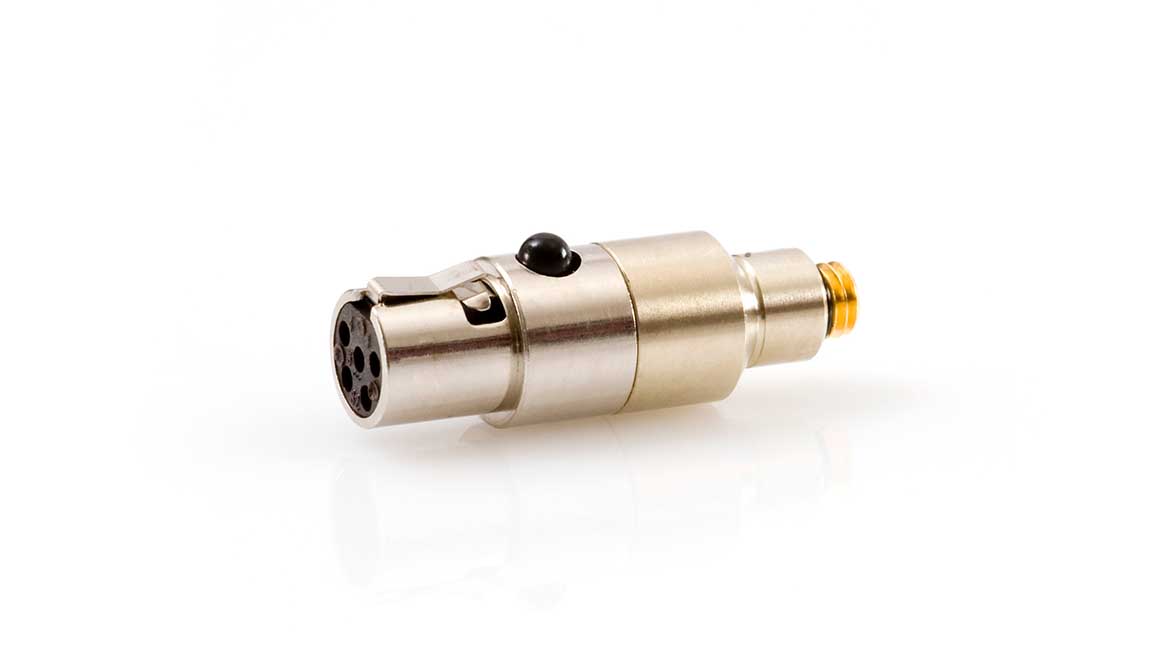

Adapter for Audio-Technica ATW-T101 (U100), Lectrosonics UHF Systems (Low Level) (DAD6021)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Lectrosonics UHF (low level) wireless systems.
The adapter comes with a DPA MicroDot to TA-5F Switchcraft. It is ideal for normal sound pressure level (0 dB attenuation).

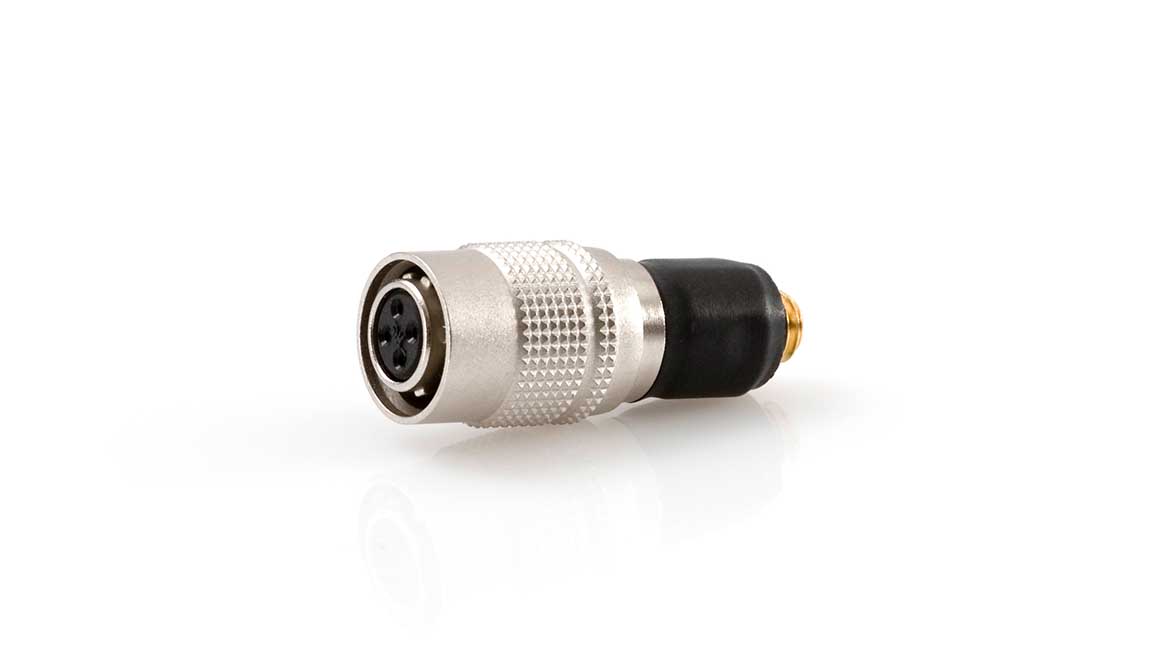

Adapter for Audio-Technica ATW-T1000 D/ATW-T310/AEW-T1000/ATW-T701 (DAD6033)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Audio-Technica wireless systems.
The adapter comes with a DPA MicroDot to a 4-pin Hirose.

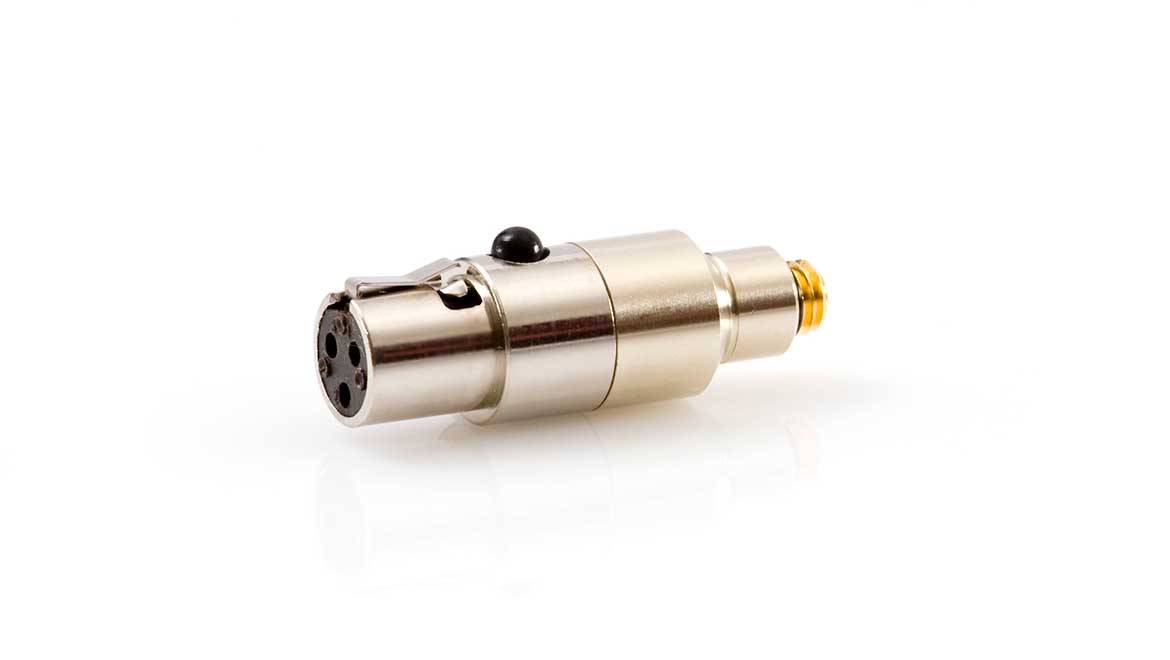

Adapter for AKG PT 60/80/81/400/450/4000, Samson UT1L, VT2L (DAD6017)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to AKG & Samson wireless systems.
The adapter comes with a DPA MicroDot to a TA-3F Switchcraft. It is also available as a fixed connector.
Adapter for Audio Ltd. En2 MiniTX (DAD6035)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Audio Ltd. En2 MiniTX wireless systems.
MicroDot to 4-pin Lemo (short version).
Adapter for Audio Ltd. Tx 2000/Tx 2020/Tx 2040 (DAD6004)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Audio Ltd. Tx wireless systems.

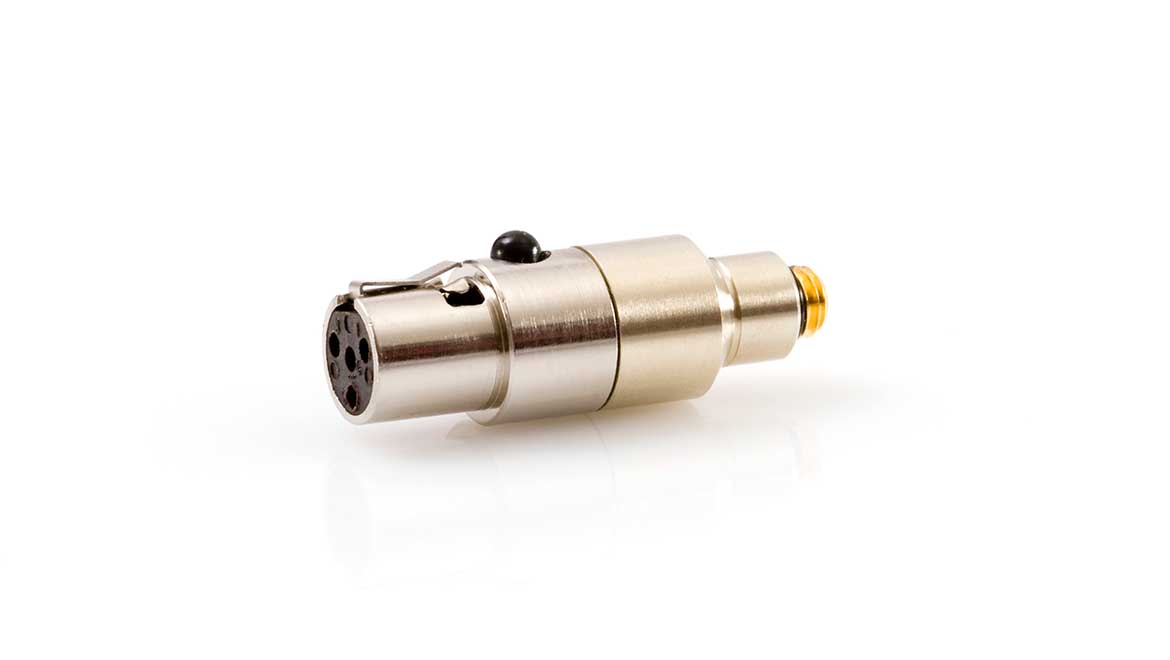

Adapter for Beyerdynamic OPUS and Mipro (DAD6032)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Adapter for Beyerdynamic OPUS and Mipro wireless systems.
The adapter comes with a DPA MicroDot to a TA 4F Switchcraft.

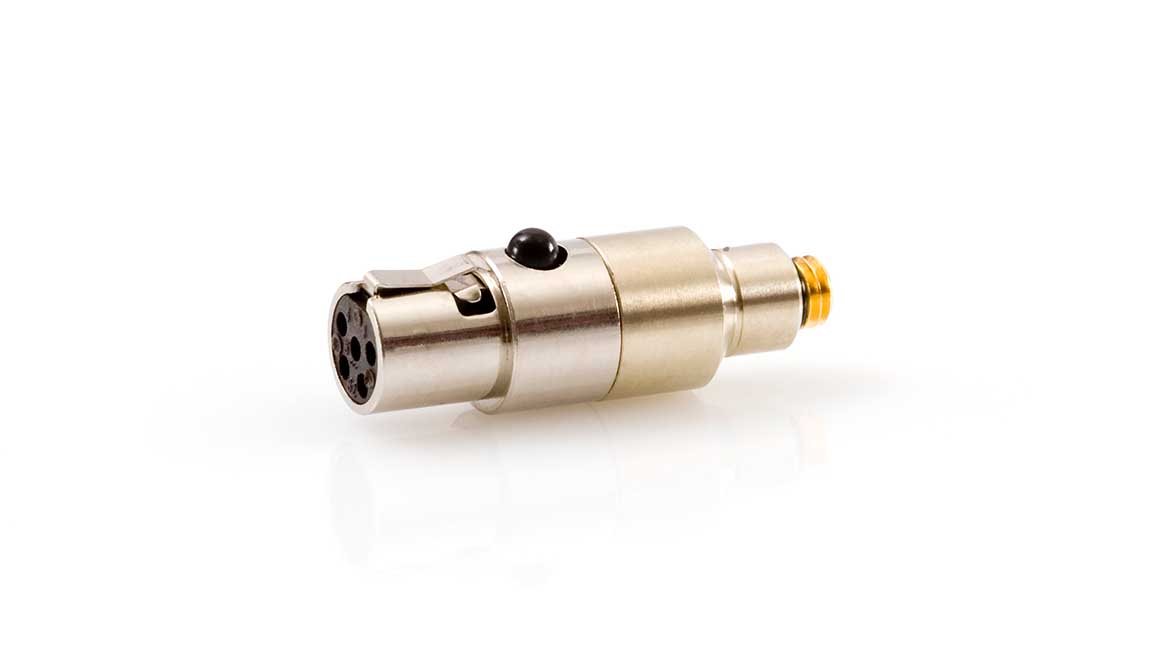

Adapter for Lectrosonics LM, SM, UM Series (for Low DC Microphone) (DAD3056)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Lectrosonics LM, SM, UM Series wireless systems.
MicroDot to a TA-5F Switchcraft.

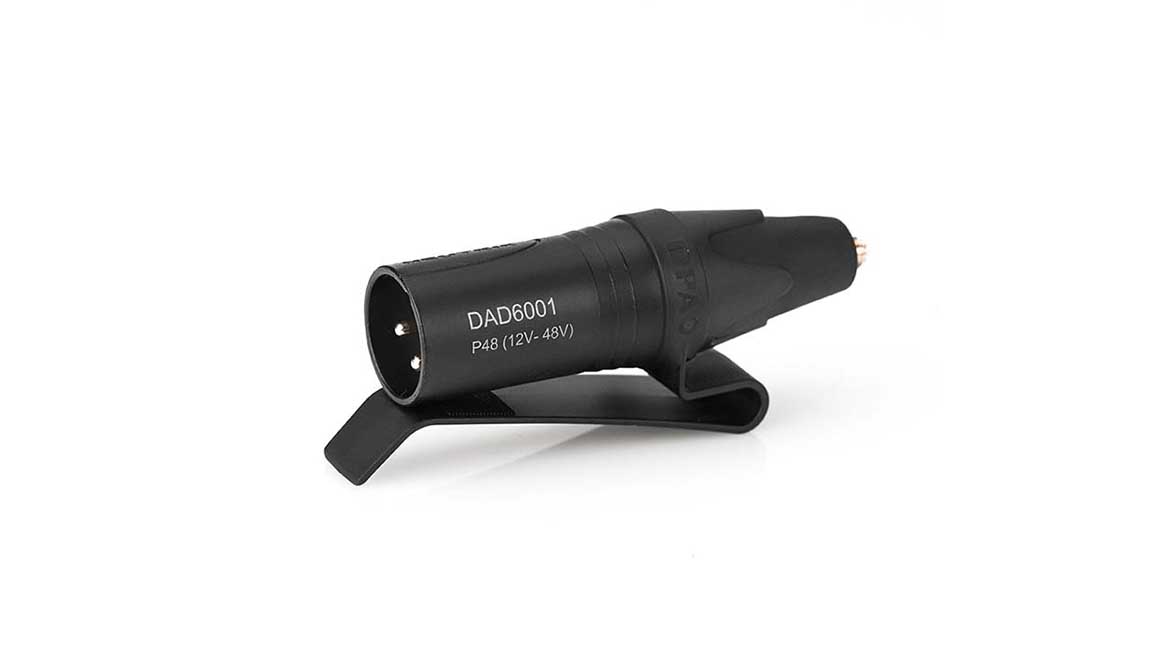

Adapter for MicroDot to 3-pin XLR with Belt Clip (DAD6001-BC)
Adapter for powering Miniature Microphones via standard P48 phantom power. Designed for use with miniature microphones from DPA. Belt clip is included.
This adapter is active-signal balanced, which improves suppression of induced electromagnetic noise. Common Mode Rejection Ratio (CMRR) is better than 60 dB from 50 Hz to 15 kHz. The adapter is functional at 12 V phantom power but needs 48 V ±4 V to reach full specifications.

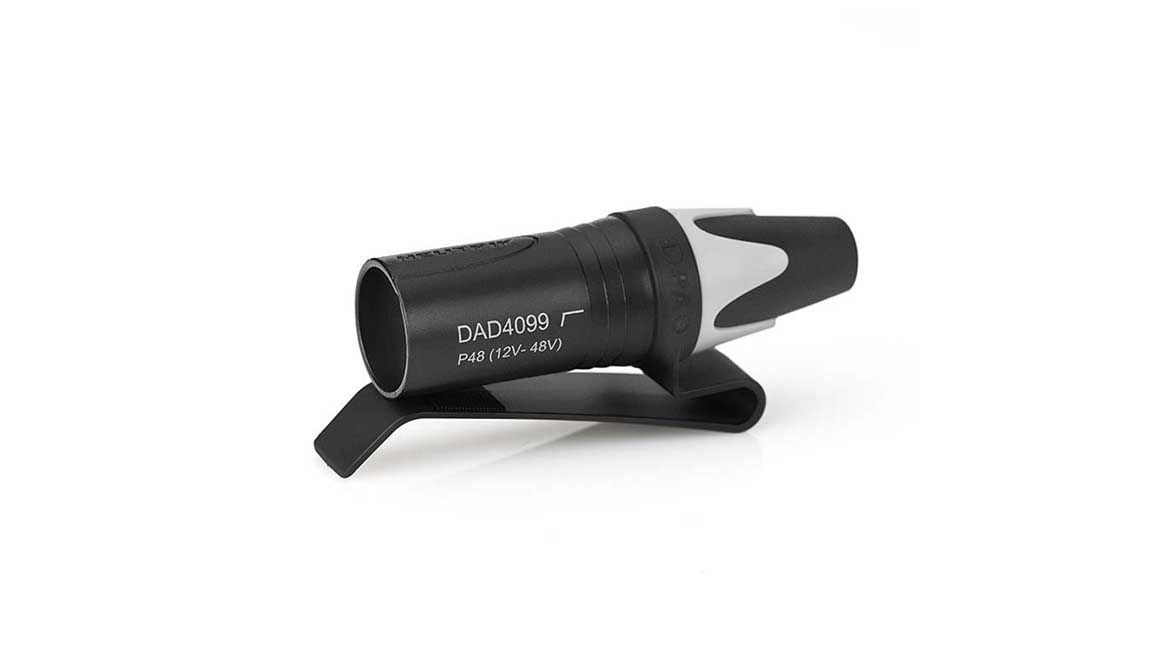

Adapter for MicroDot to XLR with Belt Clip & Low Cut (DAD4099-BC)
The Micro-Dot to 3-pin XLR Adapter features a low-cut roll-off filter and provides a balanced output signal for the DPA 4099 Instrument Microphone.
The adapters give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
Adapter for Ramsa WX-RP410 (for Low DC Microphone) (DAD3051)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Ramsa WX-RP410 (for Low DC Microphones) wireless systems.
MicroDot to 4-pin Hirose. It is also available as a fixed connector.

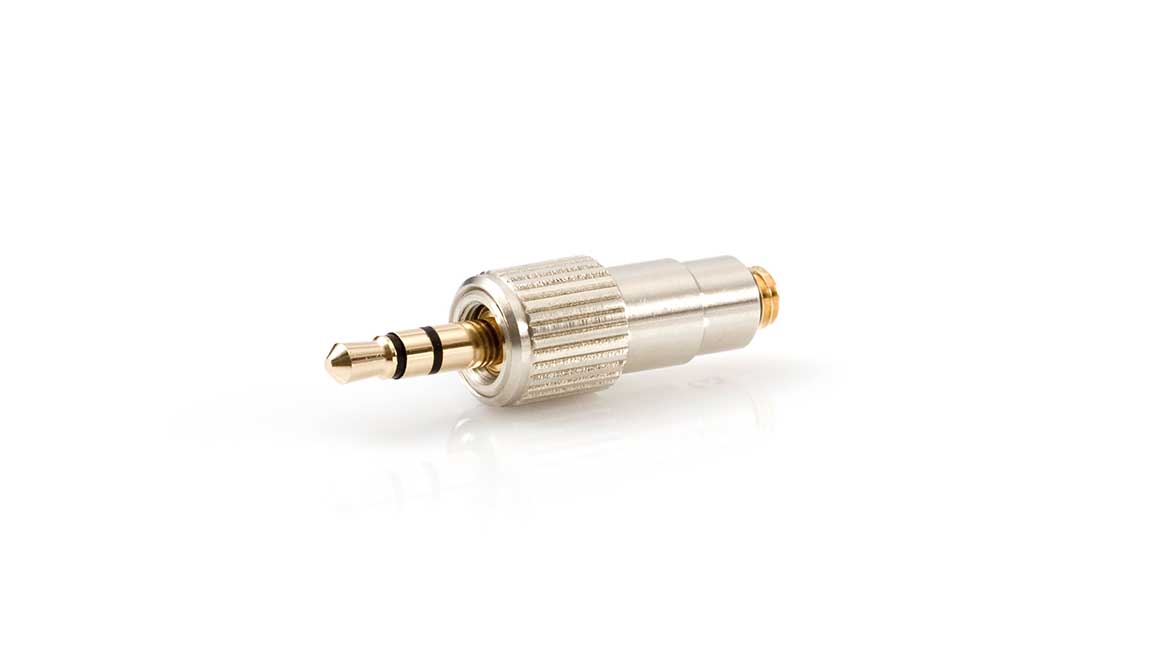

Adapter for Sennheiser Evolution/G2/G3/D1, X2 Digital Wireless, Audio Ltd En2 TX (DAD6034)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Sennheiser Evolution, X2 Digital Wireless, Audio Ltd. En2 TX wireless systems.
The adapter comes with a DPA MicroDot to Mini-Jack connector (with thread). It is also available as a fixed connector.

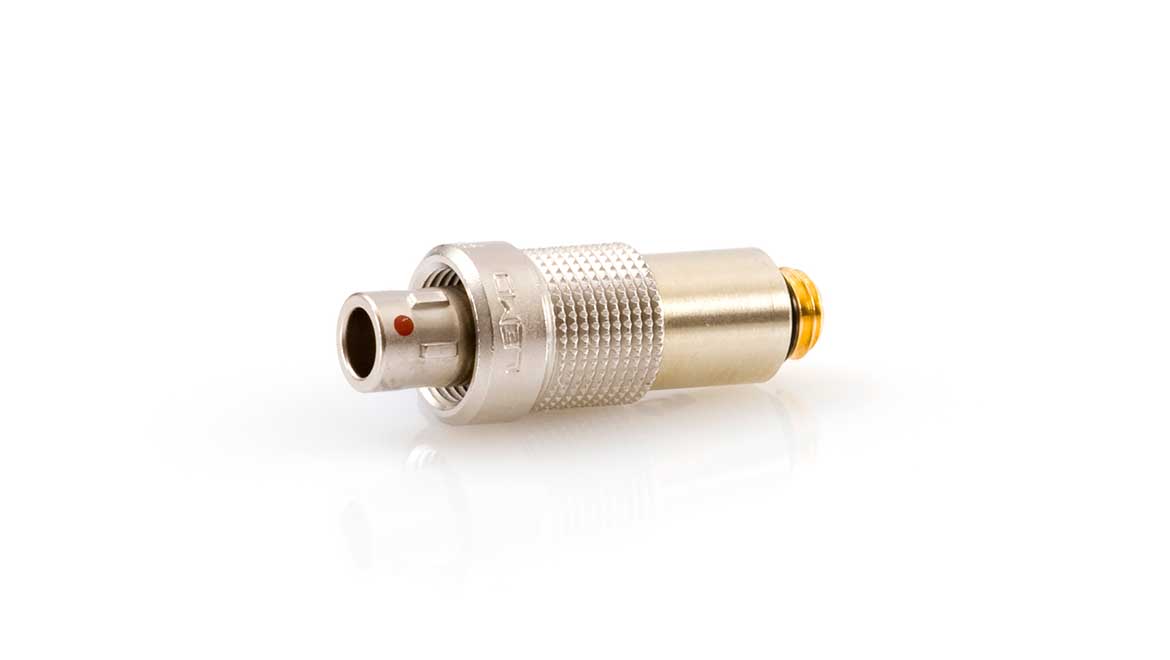

Adapter for Sennheiser SK 50/250/3063/5012/6000/9000 (DAD6003)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Sennheiser, Trantec, Shure, Wisycom wireless systems. MicroDot to 3-pin Lemo. It is also available as a fixed connector.

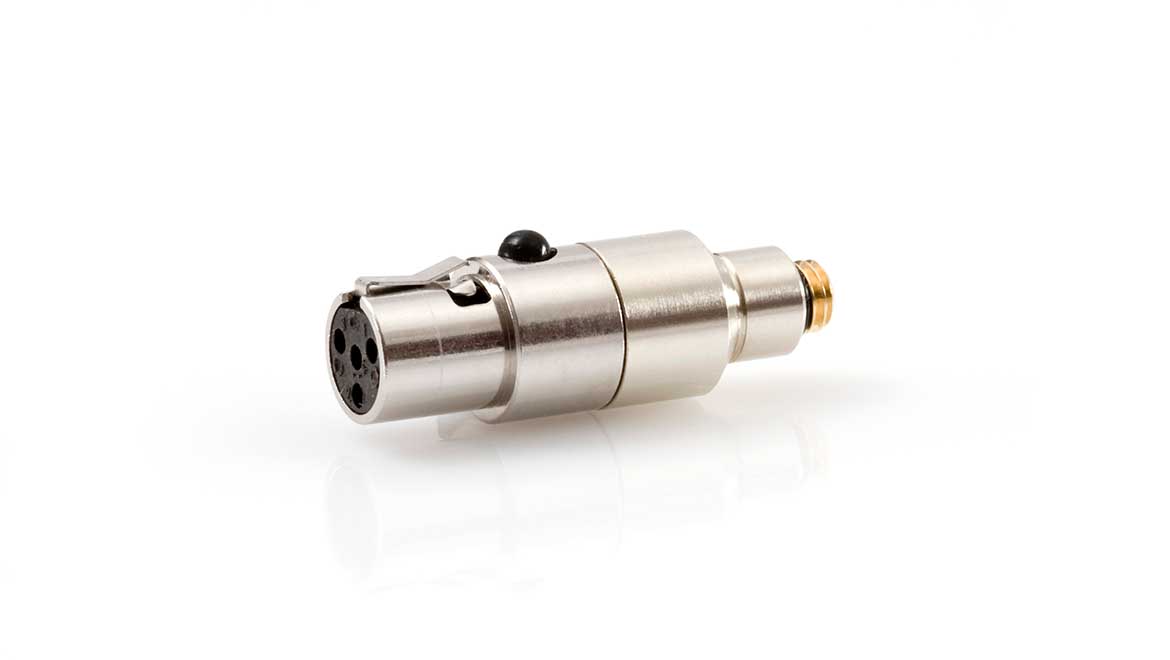

Adapter for Shure Axient Digital, TOA, PGX1, Line 6 (DAD6010)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Adapter for Shure, TOA, PGX1 & Line 6 wireless systems.
The adapter comes with a DPA MicroDot to TA-4F Switchcraft. It is also available as a fixed connector.
Adapter for Sony DWT-B01/WRT820/WRT860/WRT8 (DAD6008)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Adapter for Sony wireless systems.
The adapter comes with a DPA MicroDot to 4-pin Hirose. It is also available as a fixed connector.
Adapter for Sony Freedom WRT 805 (DAD6019)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Sony Freedom WRT 805 wireless systems.
The adapter comes with a DPA MicroDot to Mini-Jack (with thread). It is also available as a fixed connector.

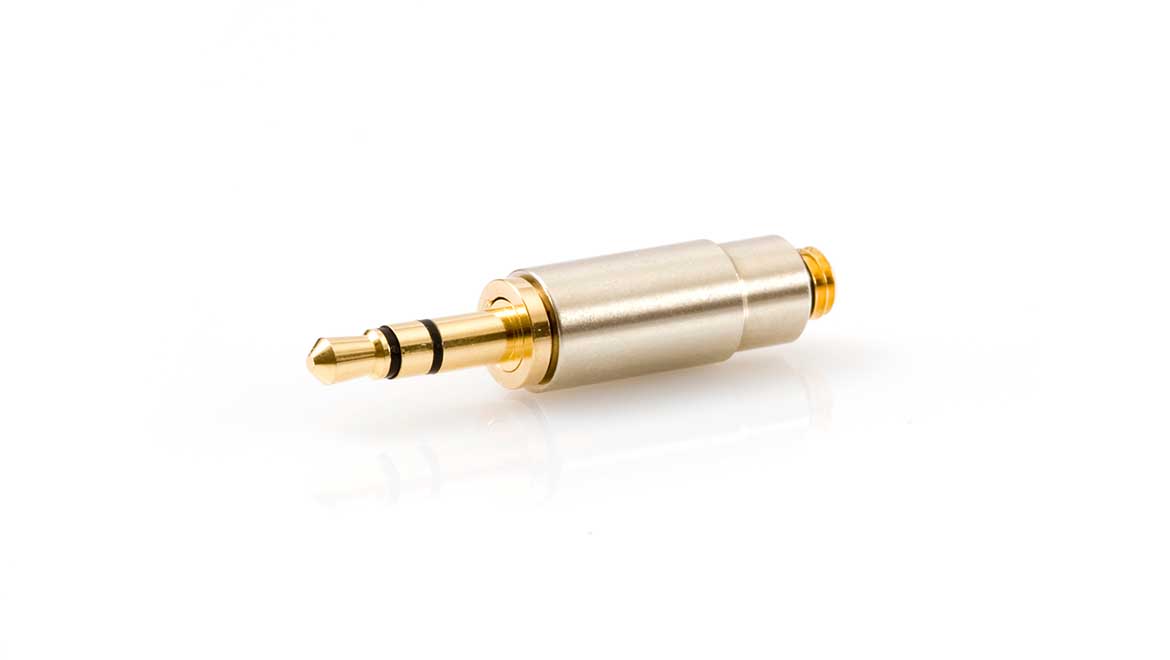

Adapter for TOA WM360/4310 (for Low DC Microphone) (DAD3050)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to TOA WM360/4310 (for Low DC Microphones) wireless systems.
MicroDot to Mini-Jack. It is also available as a fixed connector.
Adapter for Zaxcom TRX900 (for Low DC Microphone) (DAD3057)
An adapter that connects the DPA headset microphones, the DPA lavalier microphones as well as the DPA instrument microphones to Zaxcom TRX900 wireless systems.
MicroDot to 3-pin Lemo (Zaxcom).
